Radiation Shielding Products Nuclear Radiation Protection Customized Galvanized Steel Panel

JVVMED-DUHCS75-RFM adopts a complete isolation protection design and a clean arc stainless steel inner cavity, meeting the needs of positron radiopharmography synthesis. It requires high standards of lead shielding and biological cleanliness to not only adhere to radiation safety environmental standards but also ensure a cGMP clean pharmaceutical environment during the synthesis of positron radiopharmaceuticals.

The hot chamber consists of three main parts:

• The control area, situated at the top of the hot chamber, is equipped with an independent ventilation system, a hot chamber control unit, gas valve, and a radiation dose monitoring and interlocking unit.

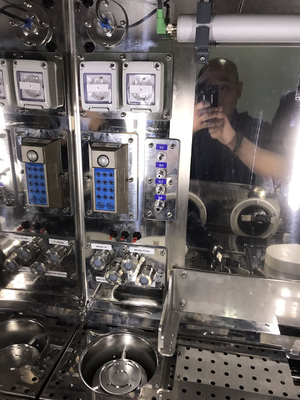

• The working area is in the middle section of the hot chamber, accessed by opening the front shield door. Its large internal size design can accommodate all synthesizers available in the market.
• The auxiliary area is located at the lower part of the hot chamber, providing auxiliary functions as required by the hot chamber.

Features:

• Product Name: Nuclear Radiation Protection
• Type: Hot Cell
• Usage: Radiation Shielding Products
• Nuclear medicine equipment: Hot Cell, Hot Lab
• Accessory: Tungsten Radiation Shielding
• Lead equivalent: Customized Design

Technical Parameters:

Main Technical Parameters

·cGMP biological cleanliness level working area

Dual synthetic lead chamber made of stainless steel by seamless welding

• Cleanliness: Class C
• Negative pressure: -50Pa~-200Pa
• Demand air volume: 300 m ³ /h
• Sealing: Second Level Standard Sealing
• Air supply: high efficiency filter
• Exhaust: activated carbon filter

·Lead shielding conforming to ICRP radiation environmental safety standards

• Front side: 75mm PB
• Left/right side: 60mm PB
• Target line shielding: 50mm PB
• The radiation dose at the surface of the hot chamber < 5μSv/h@3Ci-F18
• The radiation dose at 30cm of the hot chamber < 1μSv/h@3Ci-F18

·Size

• Internal dimensions: 850 mm (w) * 619 mm (d) * 700 mm (h)
• External dimensions: 1185 mm (w) * 1117 mm (d) * 2400 mm (h)
• Accessories: lamp, UV lamp, ozone sterilization device, power socket, etc

Applications:

Jovi Nuclear Radiation Protection product model number 1-CF-56 is designed for various application occasions and scenarios in the field of nuclear radiation protection. Originating from China, this product offers high-quality protection against radiation and is suitable for a wide range of uses.

The Jovi 1-CF-56 Nuclear Radiation Protection product is ideal for applications in the Nuclear Medicine Field, Radiation Shielding, and Gamma radiation environments. It is specifically designed for usage as a Hot Cell, providing a protective shield against nuclear radiation.

One of the key attributes of this product is its protection level, offering 10Pbmm, 20mmPB, 50Pb, and 100Pb shielding capabilities. This makes it highly effective in safeguarding against various radiation sources.

With a minimum order quantity of 1 set, the Jovi Nuclear Radiation Protection product comes packaged in a sturdy wooden case for safe transportation. The delivery time for this product is 25 working days after receiving payment, with payment terms being T/T in advance.

Included as an accessory with this product is Tungsten Radiation Shielding, enhancing its protective capabilities in nuclear radiation environments. The Jovi 1-CF-56 model is suitable for scenarios requiring shielding against F18, I131, and other radioactive materials in Hot Cell applications.
