Hot cell with fully automatic dispensing system PET radiopharmaceuticals

Our Hot cell solutions can be adapted for processing of almost any radiopharmaceutical and radiochemical product. Whether planning a facility for the production, processing, labeling, dispensing or sterile filtration, whether working with alpha, beta or gamma emitters in Positron Emmission Tomography (PET) or Single Photon Emmission Computed Tomography (SPECT), we provide you with highest quality solutions for different applications.

Product Detail:

1,Satisfy the operation of I131 nuclear drug dispensing and other operations, the working area meets the Class A (ISO 100) level of purification.

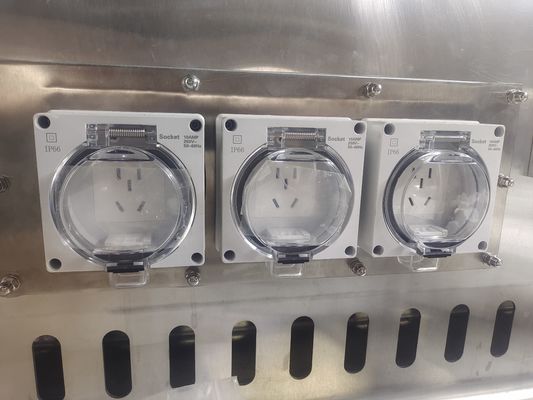

2,Configured with intelligent AI human-machine interaction control platform, non-contact intelligent control of the fume hood's lighting, sterilisation, negative pressure ventilation, drug lifting and lowering table, switch and socket, door and machine interlocks and other functions. Descending table, switch and socket, door and machine interlock and other functions;

3,With vertical laminar flow and negative pressure ventilation system clean arc mirror stainless steel inner cavity, corner around and the top of the R15 arc, surface clean and easy to clean.

4, external dimensions: W1050 * D750 * H2200mm inner size: W780*D450*H610mm

5,Lead equivalent is 30mmPb in back side and top side, 40mmPb in the Front, bottom, left and right sides.

6, the front set of lead glass observation window, observation window lead glass shielding effect should be consistent with the amount of lead thickness of 40mmPb

7. Net weight is estimated 2.3 ton

8, the front of the two operator holes equivalent to 40mmPb, and is equipped with a protective cover with a locking device. Surely it can be also customized design Lead equivalent.

9. The construction ensures GMP-compliant production under grade C conditions. There are three different types that differ in size. The standard model consists of a stainless steel cell and 50/75 mm lead shielding, with a shielded door and lead glass window at the front side for easy access to the synthesis module.

Product Feature:

Hot cells are shielded radiation containment chambers that allow operators to safely handle and manipulate radioactive isotopes. They are used in both the nuclear energy industry and in nuclear medicine.

Applications

The main uses of hot cells are in the nuclear energy industry and in nuclear medicine, specifically in the production of radiopharmaceuticals. However, they are also used in cleanroom environments for scientific research.
